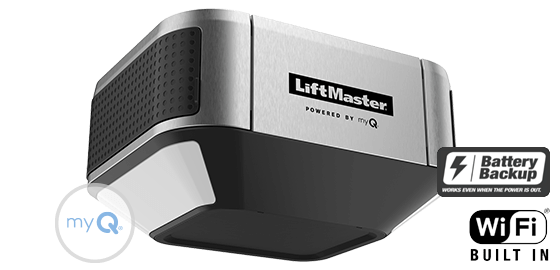

Model 84602
LiftMaster Powered by MyQ Logo

84602

Model 84602

Features

The LiftMaster 84602 door opener is part of their Premium Series. The heavy-duty ½ HP motor is equipped with the Vibration Isolation System, a design that provides you with smooth and quiet operation. Featuring an LED light on each side, this opener provides powerful lighting for your garage. Battery backup is included and ensures access to the garage even during a power outage. Equipped with Wi Fi® and Bluetooth, it is possible to control the door with the free myQ® app. This allows you to open or close the door via a smartphone or tablet, wherever you are in the world.

  • Drive system: Chain drive
  • Horsepower: ½ HP Equivalent DC Motor
  • Voltage: 120V AC, 60 Hz
  • Backup battery included safely enter or exit the home through the garage, even when the power is out
  • Soft start/stop for smooth operation
  • Integrated Wi-Fi and Bluetooth for the easiest way to connect the garage to myQ
  • PosiLock electronically locks down the door and protects against forced openings
  • myQ Technology allows you to monitor and operate your garage door opener safely using your smartphone.
  • Lighting system: lights up the garage when activating door and when photo eyes' beam is broken. 2 LED lights, 1500 Lumens output
  • ALERT-2-CLOSE signals when a door is about to close because of the timer or the myQ app
  • Additional headroom required: 2" (51 mm)

Warranty:

  • Lifetime on motor
  • Backup battery, remote and control panel have a 1-year warranty
  • Internal parts and LED lights have a 1-year warranty
  • Please refer to manual for details

Standard security systems

Your security, our priority!

The Protector System

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down.

Also equipped with an obstruction sensing technology, the door will reverse if it encounters an object or a person

LiftMaster Protector System

Emergency Release Rope and Handle

Used to release the trolley from the rail and manually operate the garage door.

Manual release handle

Security+ 2.0

Safeguards garage access by sending a new secure code with every use of a remote

Security+ 2.0 Logo

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

The Protector System

Project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down.

Also equipped with an obstruction sensing technology, the door will reverse if it encounters an object or a person

LiftMaster Protector System

Emergency Release Rope and Handle

Used to release the trolley from the rail and manually operate the garage door.

Manual release handle

Security+ 2.0

Safeguards garage access by sending a new secure code with every use of a remote

Security+ 2.0 Logo

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

Included in delivery

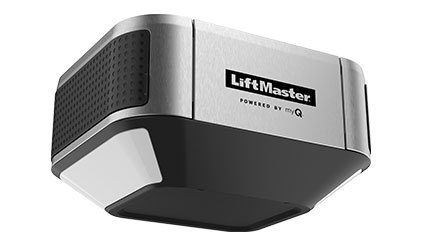

84602 garage door opener
84602 garage door opener
Battery - 485LM
Integrated Battery Backup (485LM)

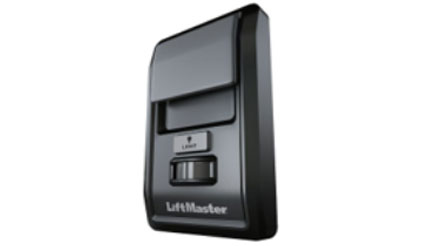

Multi-function control panel (886LMW)
Multi-function control panel (886LMW)
3-Button Security+ 2.0 remote (893LM)
3-Button Security+ 2.0 remote (893LM)
The Protector System
Safety reversing sensor kit (The Protector system®) (041-0136)
One-piece ''T'' rail with durable chain
One-piece ''T'' rail with durable chain

Also included: All necessary hardware for installation

Documents to download

 Owner's manual

 Warranty

 Brochure

 Maintenance
